Center winder

Design

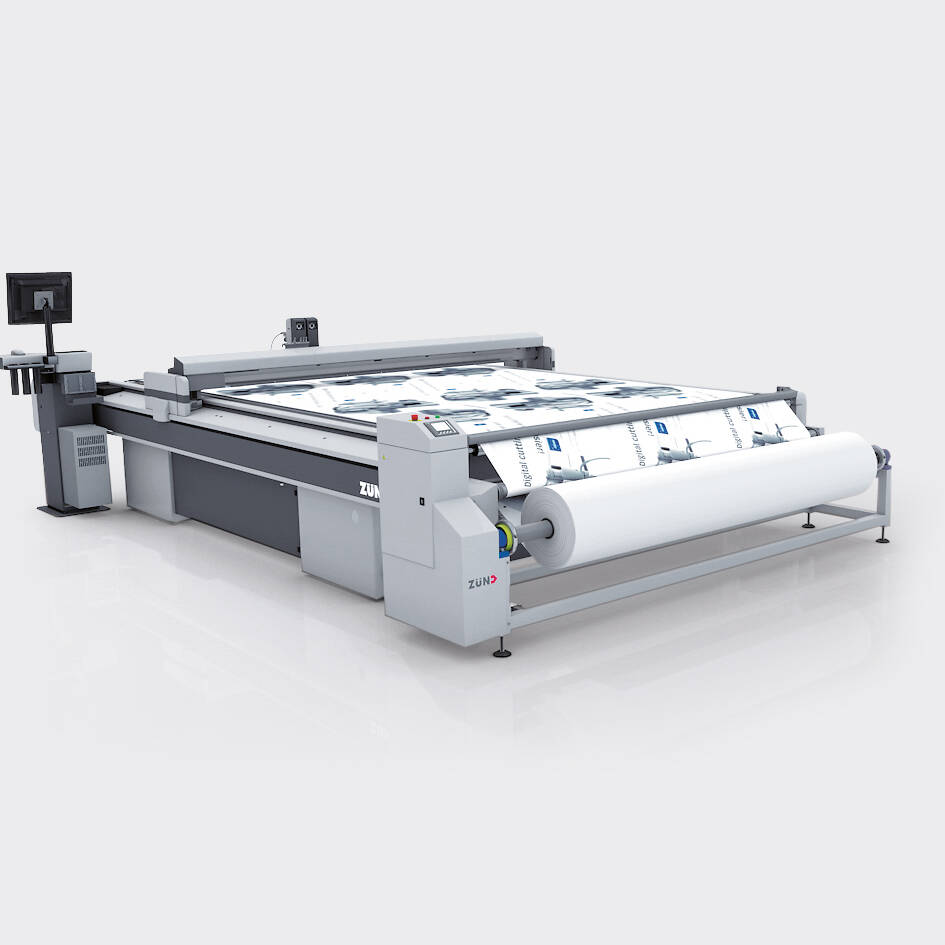

The robust design of the Zünd Center Winder enables processing rolls up to a weight of 100 kg/220 lbs. The well-designed mechanics ensure consistent material tension. Even challenging textile materials can be fed onto the cutting system free of wrinkles and tension. The driven center winder can both unwind and rewind rolled materials. For lighter rolls weighing up to 40 kg/90 lbs, the dancer bar can be used as a passive roll-off unit.

Zentrumswickler

All benefits at a glance

  • Wrinkle-free roll-off/rewind
  • Motor-driven system for wide, heavy rolls
  • Dancer system for consistent material tension
  • Pneumatic shaft grips and stabilizes the core
  • Alternative use as passive roll-off for lighter rolls
  • Suitable for inward/outward wound rolls

Details

  • Max. roll diameter: 350 mm/13.5 in
  • Max. roll weight: 100 kg/220 lbs
  • Roll core diameter: 76 mm/3 in
  • Available for cutter sizes
Media

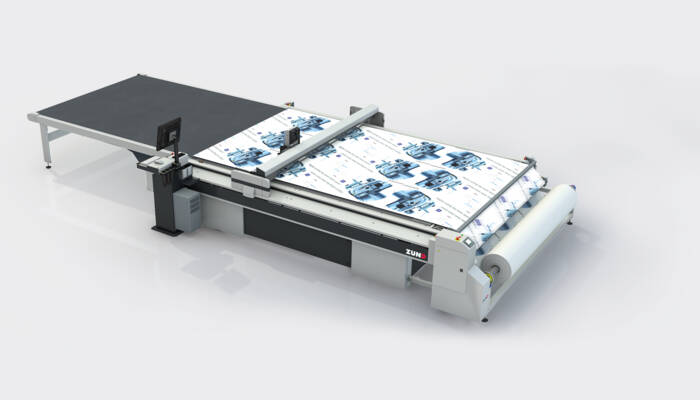

Center winder

Roll off/rewind flexible materials wrinkle free
