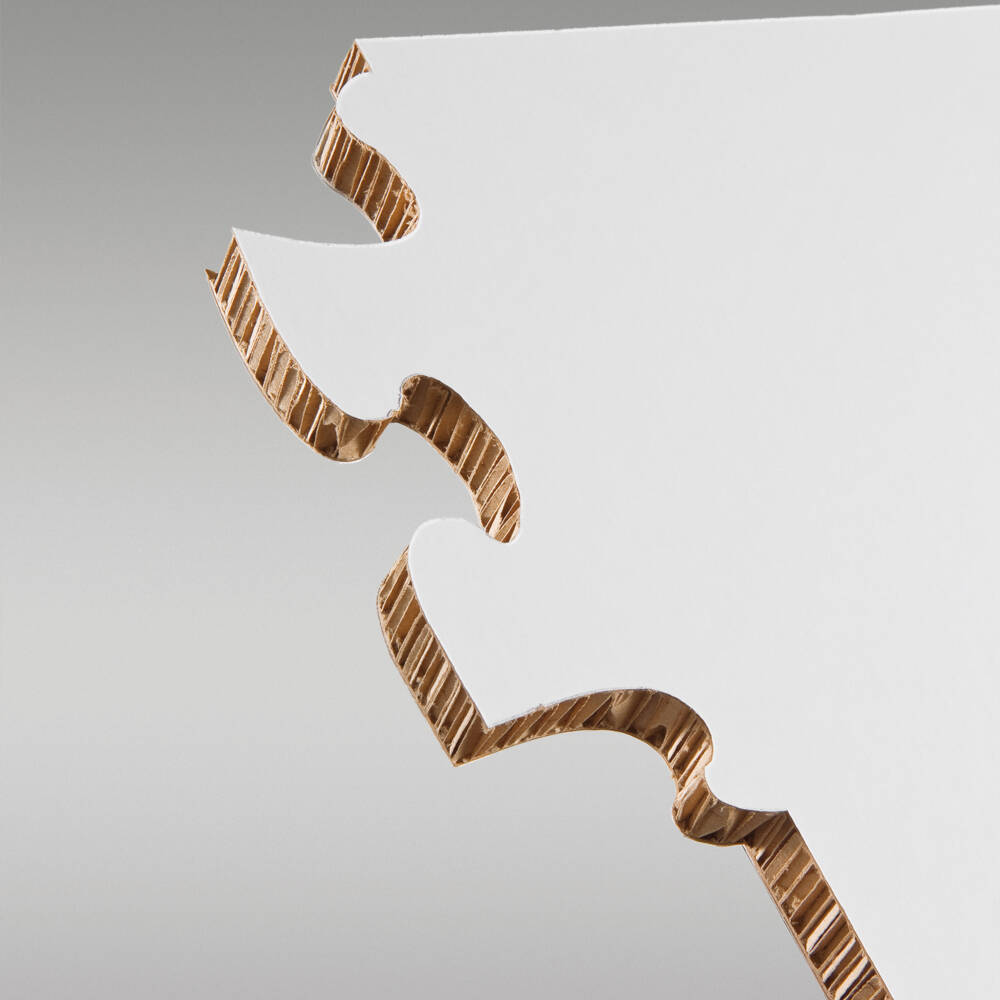

Twin-wall sheets

Materials

  • Honeycomb paperboard
  • Honeycomb
  • Display board

Brands

  • X board
  • Re-board
  • Coroplast
  • Akyprint
  • Allison Board
  • Falcon Board
  • Beelite

Tools for the processing twin-wall sheets

4 Product(s) found
Sorry, no suitable results found for these filters.
1 / 4
EOT-250
Electric Oscillating Tool

Powerful tool with high-performance electric motor for processing thick cardboard and leather materials.

EOT-250
Electric Oscillating Tool - EOT-250

The Electric Oscillating Tool is ideal for efficiently processing materials such as honeycomb display board, thick cardboard, and tough leather. This high-performance tool is equipped with a powerful air-cooled motor. With an extended, 2.5 mm stroke andhigh oscillating frequency, the EOT-250 is capable of processing challenging materials at very high speeds. Zünd offers a wide variety of high-quality blades for use with the EOT-250.

  • 2.5 mm stroke
  • Very high processing speeds
  • Wide range of Zünd oscillating blades available
  • Compatible with G3, S3, D3, L3
Product information
Material

Rubber

Twin-wall sheets

Cardboard

Leather

110 mm/4 in foam

POT
Pneumatic Oscillating Tool

Powerful oscillating tool with extended stroke for cutting tough, dense materials up to 110 mm / 4.3 in thick.

POT
Pneumatic Oscillating Tool - POT

The Pneumatic Oscillating Tool is an air-driven tool particularly well suited for cutting tough, dense materials but can also handle soft, thicker ones. The use of considerable air pressure in combination with an 8mm stroke gives this tool the force required for tough applications.

The POT is available in two versions, with 0.6 mm or 1.5-mm thick blades. With sufficient beam clearance, it is possible to process materials up to 110 mm / 4 in thick. A wide range of possible applications are supported with a variety of compatible oscillating blades.

  • High-performance cutting tool with 8 mm stroke
  • Powerful, low-maintenance pneumatic tool
  • Two versions available for 0.6 mm or 1.5 mm blade thicknesses
  • Compatible with G3, S3, D3, L3
Product information
Materials

Rubber

Twin-wall sheets

Cardboard

Leather

Foam / 110 mm foam

Corrugated cardboard

UCT
Universal Cutting Tool

Universal cutting tool for materials up to 5 mm thick.

UCT
Universal Cutting Tool - UCT

The Universal Cutting Tool is perfect for through-cutting various materials up to 5 mm/3/16 in thick. The use of drag knives allows for very high processing speeds. Compared to motor-driven tools, the UCT is very inexpensive to purchase and maintain. A spring-loaded glide shoe permits cutting very fine details. Optionally, a fixed glide shoe can be used for cutting at set depths.

  • Wide assortment of Zünd drag knives available
  • Very high processing speeds
  • Compatible with G3, S3, D3, L3
Product information
Materials

Vinyl

Twin-wall sheets

Cardboard

Textiles

VCT1
V-Cutting Tool

Tool with 7 different cutting angles. Produce complex 3D designs from foamcore and corrugated/honeycomb display boar ...

VCT1
V-Cutting Tool - VCT1

The V-Cutting Tool is the perfect tool for producing complex, three-dimensional structural designs made of cardboard, foamcore materials or corrugated/honeycomb display board. A well thought-out design allows for quick tool changes and easy, precise angle adjustments.

The VCT1 can cut at seven different angles (0 °, 5 °, 10 °, 15 °, 22.5 °, 30 °, 45 °).

  • Simple, precise angle adjustments
  • Produces cuts at seven different angles
  • Very quick blade changes
  • Compatible with G3, S3, D3
Product information
Materials

Applicable Modules

UM
Universal module

Universal carrier modules for a wide range of tools.

UM
Universal module

The Universal Modules are widely applicable carrier modules designed to accommodate many different tools. The versatility of these modules makes it very cost-effective to adapt the cutting system to changing production requirements.

A bayonet lock allows for quick tool changes without a need for a screwdriver. A new or different tool can be set up with little effort and made ready for use. Modules can be operated in pressure or position mode. For different applications, the Universal Module is available in four different versions.

  • Exceedingly fast tool changes
  • Tool detection
  • Two operating modes: pressure/position
Product information
Module versions

UM-S (S3, L3)
UM-ZS (G3, D3)



UM-ZP (G3, D3)
UM-120 (G3)
UM-60L (G3, D3)
